YEONHO

Yeonho connectors in stock at YILUDA TECH. Twenty-seven Yeonho lines are held as 100% original, new and unused material, covering 2.00 mm and 2.50 mm wire-to-board headers in through-hole and surface-mount versions.

What is listed

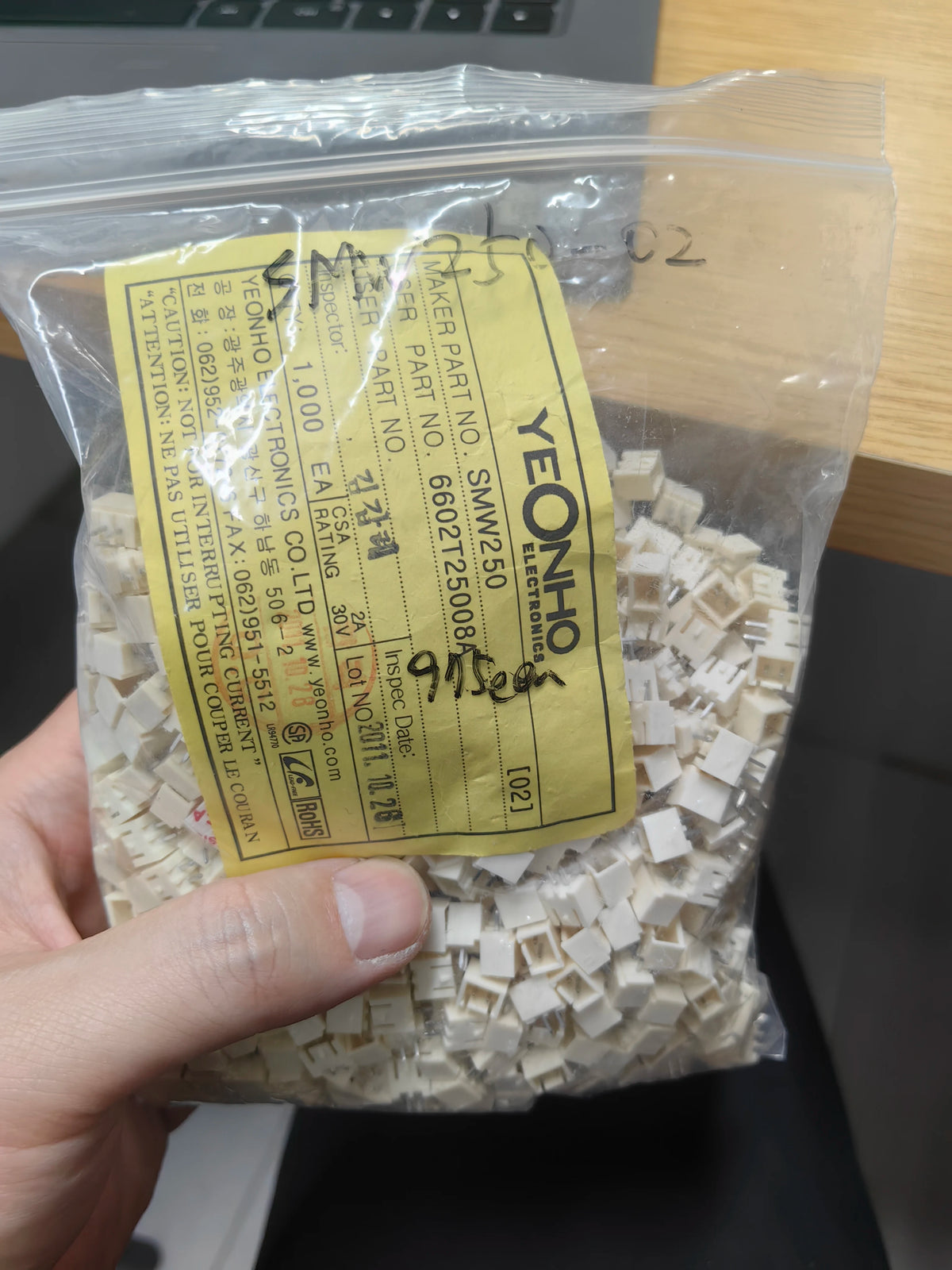

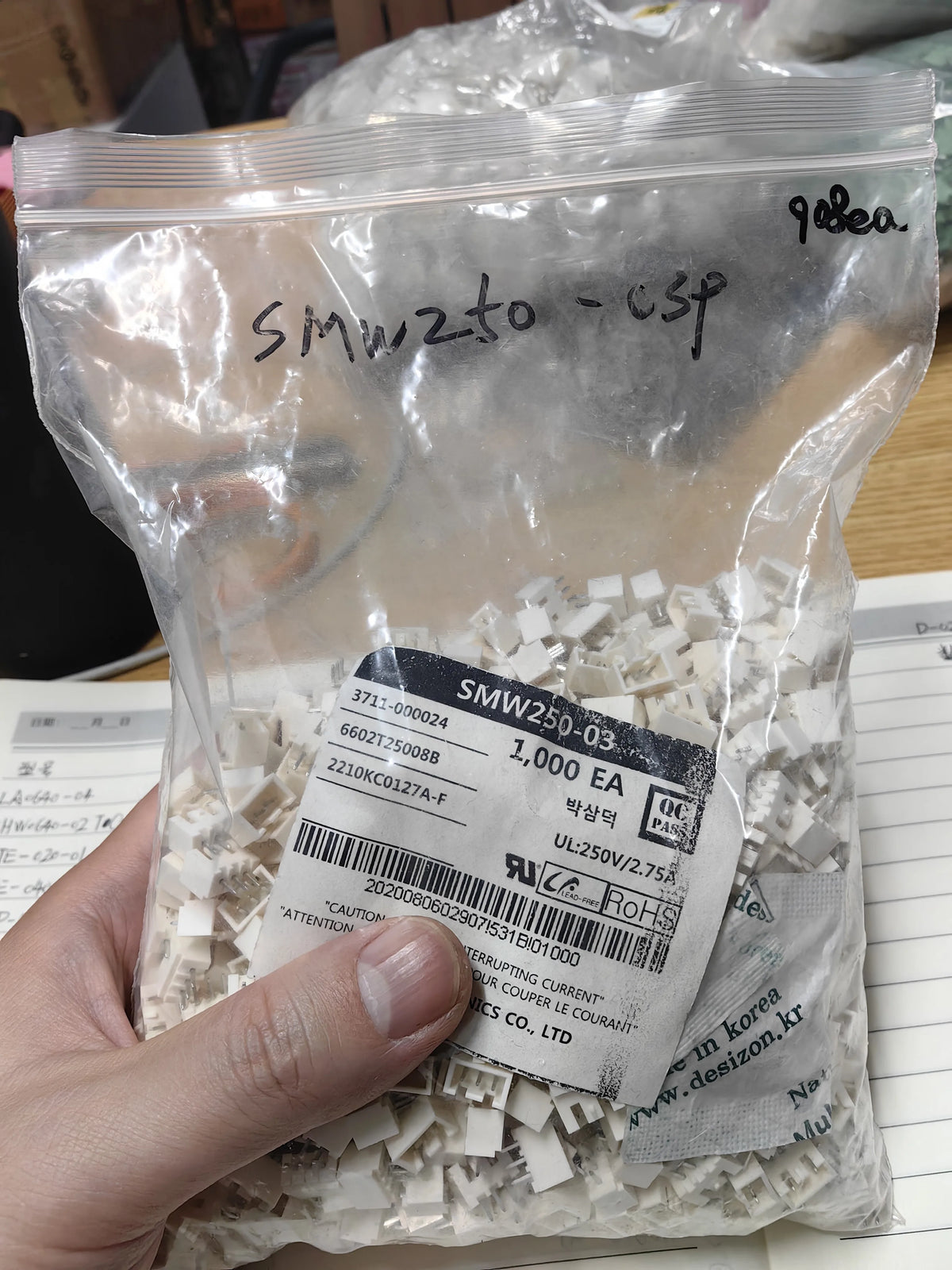

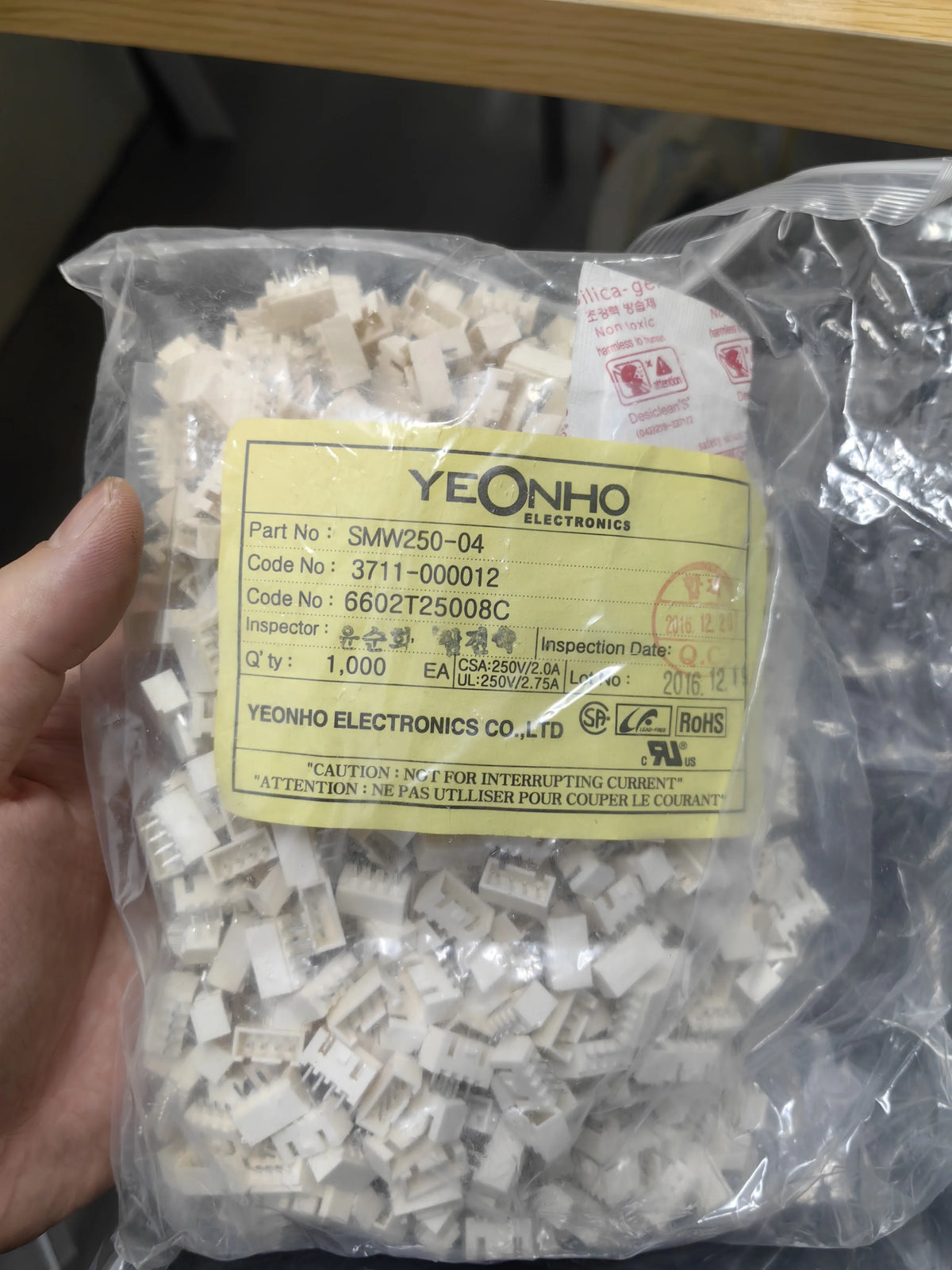

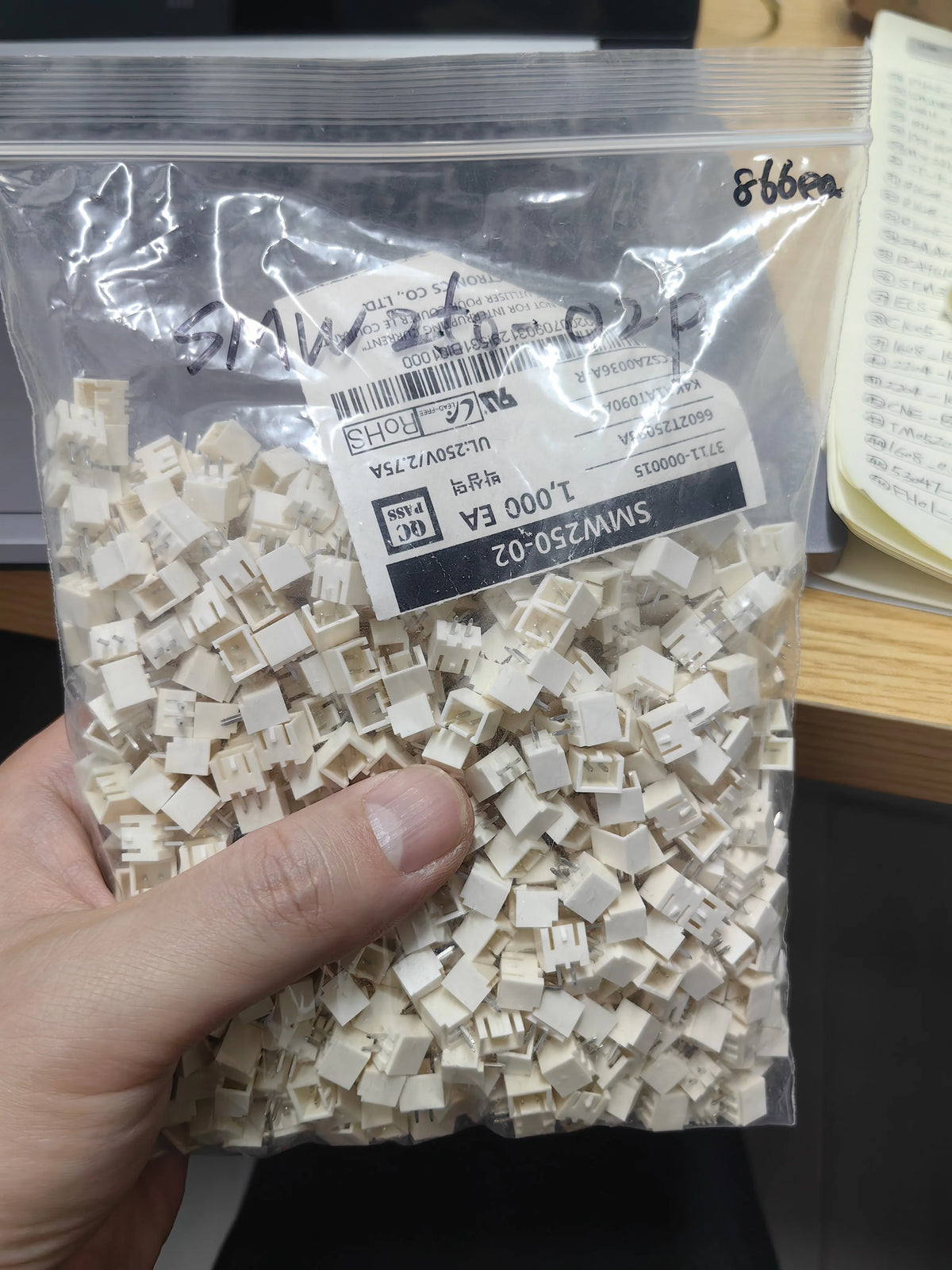

2.50 mm pitch — SMW250-02, SMW250-03, SMW250-04 and SMW250-08 in SMT, SMAW250-04, SMAW250-06 and SMAW250-08.

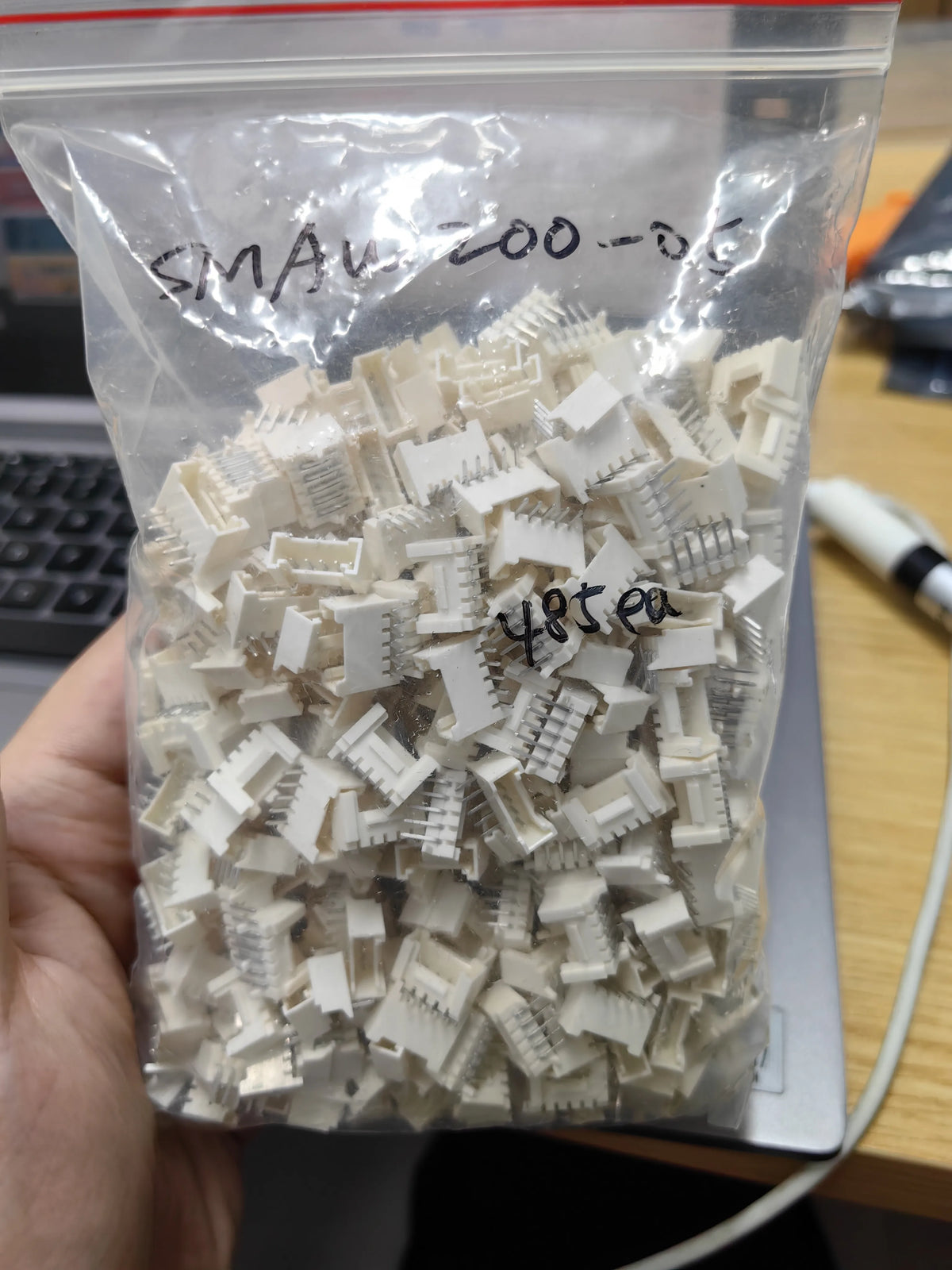

2.00 mm pitch — SMAW200-05 and DH200-165MT.
Other — YH-55-10 in DIP.

Reading the code

The number after the family prefix is the pitch in hundredths of a millimetre: 250 is 2.50 mm and 200 is 2.00 mm. The final digits are the circuit count, so SMW250-04 is a four-way 2.50 mm header and SMAW250-08 is an eight-way. The prefix distinguishes body styles — SM and SMAW are different mounting and orientation variants of the same pitch family — which is why two headers with identical pitch and circuit count can still be the wrong part.

Pitch is the interface, not the footprint

Wire-to-board connectors are chosen as a set with their housing and crimp terminals. A 2.50 mm header needs a 2.50 mm housing, and the housing needs the matching terminal for the wire gauge in use. Substituting 2.00 mm for 2.50 mm to fit a shortage is not a workaround — the pins will not align with the housing cavities, and forcing them spreads the contacts permanently. On the board side, the through-hole and surface-mount versions of the same pitch leave different pad geometry, so a rework substitution changes the assembly process as well as the part.

Ordering notes

Quote the full code including the prefix that defines mounting style.
Confirm whether you need the header alone or the header with mating housing and terminals.
Worldwide shipping from Shenzhen by DHL, FedEx or UPS.
